- Safe and durable thanks to the KaVo high-tech FG chuck with carbide guide bushing
- Up to 30N retention power
- Reduced standard head dimensions for better visibility and accessibility even in preparation areas that are difficult to access (E25L)
- Proven, high-precision KaVo ceramic ball bearings Made in Germany for the smoothest running even during preparations requiring a lot of power
- Reduced volume of 57 dB(A) for relaxed working and elimination of unpleasant noise for patients and dentists
- Especially resistant stainless steel head
- Dent resistent heads for greater durability and longer life
- Higher chuck strength with KaVo high-tech FG chuck with carbide bushing. Holds the bur firmly in place and delivers precise cutting performance
Made for the long haul.
Experience fast and precise working with the EXPERTmatic™ series attachments thanks to a smaller head size, snap-on facility and ceramic bearings. The Expert Series all features quality stainless steel construction and advanced hygienic solutions. The EXPERTmatic series have impressively reliable performance and outstanding durability even with the most intensive continuous use.
KaVo EXPERTmatic straight and contra-angle handpieces - Robust. Powerful. Efficient.
KaVo’s Superior Performance comes standard on all EXPERTmatic attachments.
- Dent resistant stainless steel heads
- Superior chuck strength of 30N
- Smaller head size on E25L (Head Height: 14.7mm and Head Diameter: 10.2mm)
- Smoother EXPERTgrip surface
- Multi-port spray
- Spray micro-filter
- Durability and longer life with dent resistant heads
- Higher chuck strength holds the bur firmly in place and deliversprecise cutting performance
- Improved treatment efficiency and accessibility thanks to the smaller head size
- Better handling and ergonomics with EXPERTgrip
- Optimal cooling at bur-tip with multi port spray
- Limits clogging of the spray channels with field replaceable water filter (E25 only)
Special Features
Ceramic ball bearings
for excellent quiet and low-vibration operation
Small head size
for easy, efficient access to the preparation area
Glass rod light conductor
with up to 25,000 lux for reliable detection of the preparation margins
Replaceable spray microfilter
for effective and trouble-free spray cooling
Sterilizable
sterilizable at temperatures up to 135°C / 275°F
High-tech FG chuck
with carbide guide bush for optimum longevity, precise cutting and safety.
EXPERTgrip surface
for fast cleaning and excellent grip
Whisper Quiet Operation
Quietest KaVo Air High-speed at 55 decibles
Maximum Chuck Strength
With a retention power of up to 30 N for secure retention of the bur
Variations
| EXPERTmatic | E25 L | E20 L | E15 L |
|---|---|---|---|
| Part no. | 1.007.5550 | 1.007.5540 | 1.007.5530 |
| Transmission | 1:5 | 1:1 | 5,4:1 |
| KaVo EXPERTgrip surface |
|
|
|
| Changeable KaVo spray microfilter |
|
|
|
| Ceramic bearings |
|
|
|
| Glass rod-light conductor LUX (25,000 Lux) |
|
|
|
| Washable in thermo disinfection |
|
|
|
| Sterilizable up to 135°C / 275°F |
|
|
|
| Coolhead Technology |
|
|
|
EXPERTmatic contra-angles with light
EXPERTmatic E25 L - high-speed
- Speed Increasing 1:5
- Exclusive high-tech ball bearing for a more robust and durable instrument

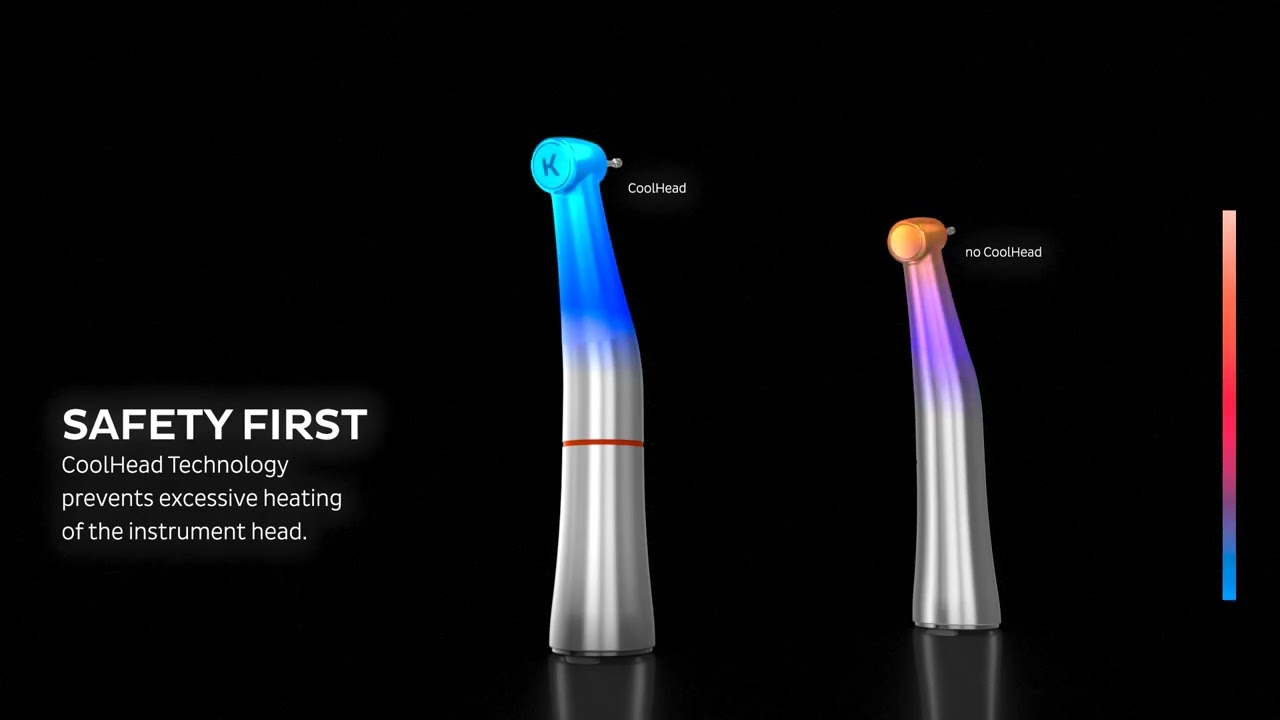

- CoolHead technology
- Speed range up to 200,000 rpm
- Cellular optic
- Internal air / water coolant
- Field exchangable spray filter for consistant spray performance
- Friction grip push button auto chuck
- 3-port spray
- EXPERTgrip
- Universal “E” type connection
- 25,000 Lux glass rod light conductor
- Part no. 1.007.5550
EXPERTmatic E20 L - contra-angle
- Transmission 1:1
- Exclusive high-tech ball bearing for a more robust and durable instrument
- CoolHead technology
- Cellular optic
- For latch type burs
- Speed range up to 40,000 rpm (electric motor) and up to 20,000 rpm (air motor)
- Internal air / water coolant
- Push button auto chuck
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- 25,000 Lux glass rod light conductor
- Part no. 1.007.5540
EXPERTmatic LUX E15 L - Contra-angle
- Reduction 5.4:1
- Cellular optic
- For latch type burs
- Speed range up to 7,400 rpm (electric motor) and up to 3,700 rpm (air motor)
- Internal air / water coolant
- Push button auto chuck
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- 25,000 Lux glass rod light conductor
- Part no. 1.007.5530
EXPERTmatic contra-angles without light
EXPERTmatic E25 C - High-speed
- Speed Increasing 1:5
- Ceramic bearings
- Speed range up to 200,000 rpm
- Non-optic
- Internal air / water coolant
- Field exchangable spray filter for consistant spray performance
- Friction grip push button auto chuck
- 3-port spray
- EXPERTgrip
- Universal “E” type connection
- Exclusive high-tech ball bearing for a more robust and durable instrument
- CoolHead technology
- Port no. 1.007.5551
EXPERTmatic E20 C - Contra-angle
- Transmission 1:1
- Non-optic
- For latch type burs
- Speed range up to 40,000 rpm (electric motor) and up to 20,000 rpm (air motor)
- Internal air / water coolant
- Push button auto chuck
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- Port no. 1.007.5541
EXPERTmatic E15 C - Contra-angle
- Reduction 5.4:1
- Non-optic
- For latch type burs
- Speed range up to 7,400 rpm (electric motor) and up to 3,700 rpm (air motor)
- Internal air / water coolant
- Push button auto chuck
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- Part no. 1.007.5531
EXPERTmatic E10 C - Handpiece
- Transmission 1:1
- For straight handpiece burs
- Speed range up to 40,000 rpm (electric motor) and up to 20,000 rpm (air motor)
- Internal air / water coolant
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- Part no. 1.007.5560
EXPERTmatic E61 C - Contra-angle
- For interproximal polishing, stripping and preparation
- 10,000 rpm optimal drive speed (20,000 rpm max. drive speed)
- EVA, to be used with Intensiv files, Ortho-Strips or Proxoshapes
- 36 individual locking positions
- Buffered stroke (protects soft tissue)
- Elevation 0.8 mm
- Internal air / water coolant
- 1-port spray
- EXPERTgrip
- Universal “E” type connection
- Part no. 1.008.4999
